Garlic Peeling Machine
for Commercial Garlic Processing

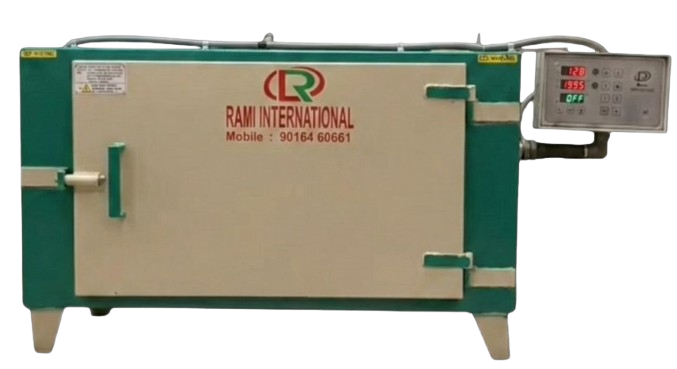

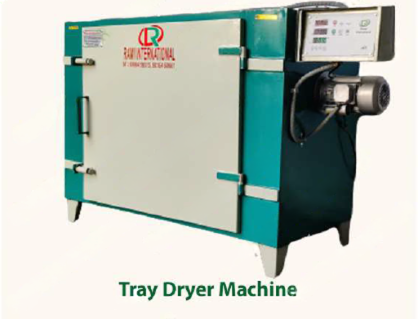

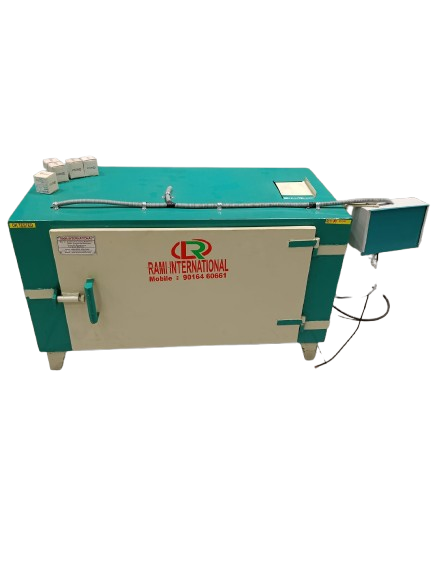

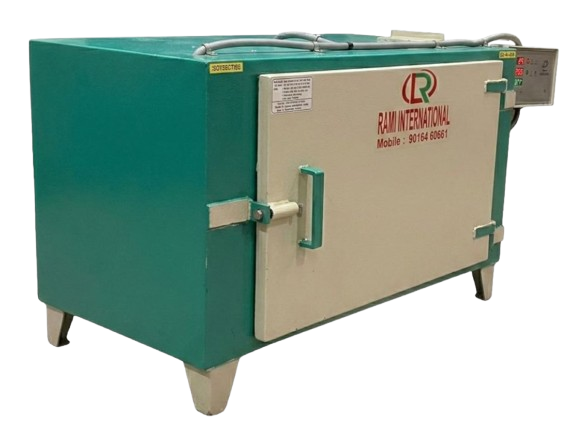

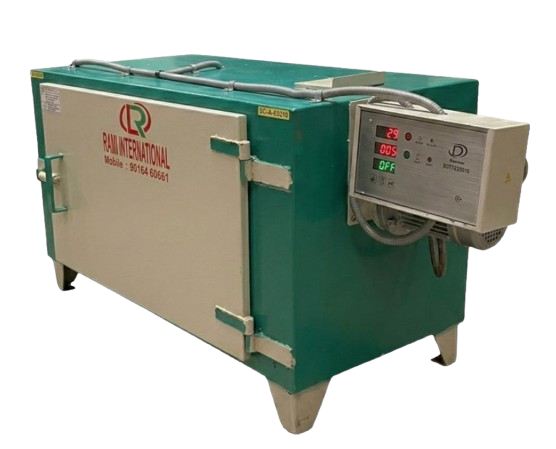

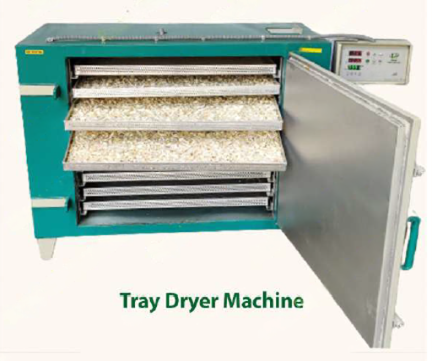

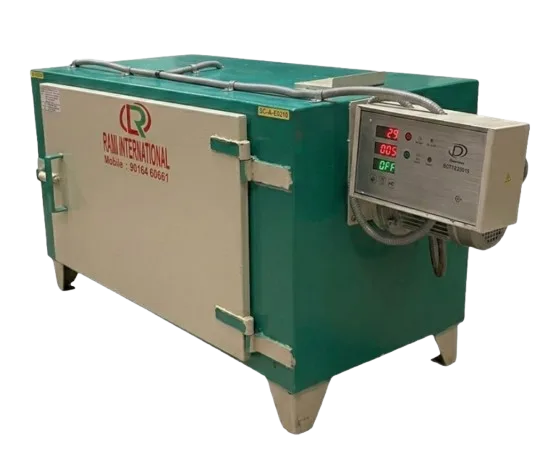

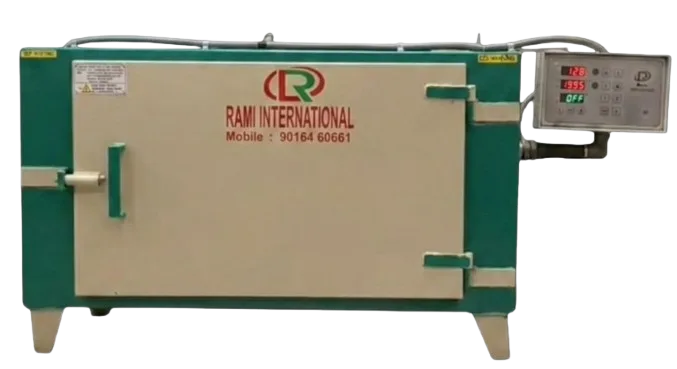

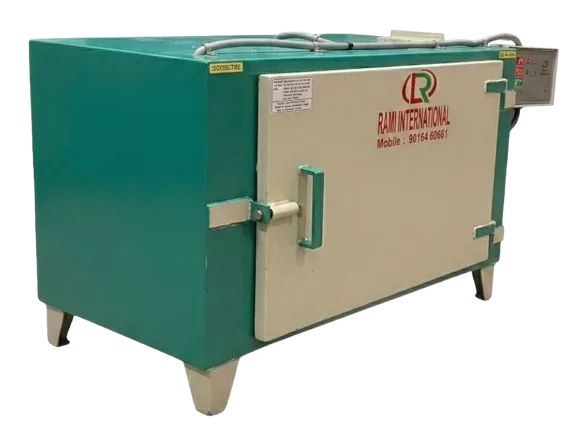

The 6 Tray Garlic Dryer Machine is used after bulb breaking and before peeling to remove surface moisture from garlic cloves using controlled heated air. It improves peeling efficiency, ensures uniform drying, and is ideal for small garlic peeling units looking for stable and hygienic output.

• 🔥 Electric heated air drying for uniform moisture removal
• 🧠 PLC-based control for easy temperature & time setting
• 🌡️ Temperature control up to 120°C
• ⚡ Plug-and-play, compact & space-saving design
• 🔕 Silent, shock-proof operation
• 🚨 Buzzer alert & auto cut-off protection
• 🧄 Improves garlic peeling efficiency

• Drying System: Electric heated air circulation
• Capacity: 6 Aluminium trays
• Total Power: ~2.1 KW | Power Supply: Single Phase
• Heater: 4 × 500 W with protection
• Material: MS inner & outer body with 50 mm insulation
• Dimensions: 57″ × 25″ × 27″ | Weight: ~120 Kg

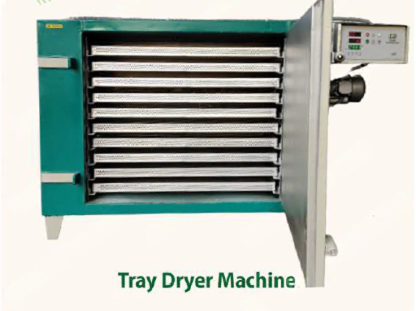

The 10 Tray Garlic Dryer Machine is used after bulb breaking and before garlic peeling to remove surface moisture using controlled heated air. It improves dry garlic peeling efficiency and is ideal for small to medium garlic peeling units requiring stable batch drying and precise temperature control.

• 🔥 Controlled heated air drying for uniform moisture removal
• 🎛️ PLC-based control panel for easy time & temperature setting
• 🌡️ Thermocouple sensor for accurate temperature control
• 🧄 Improves garlic peeling performance
• ⚡ Energy-efficient operation
• 🔌 Plug-and-play, easy to operate
• 🤫 Silent & shock-proof design
• 🚨 Auto cut-off with buzzer safety system

• Capacity: 10 Aluminium trays
• Drying System: Heated air circulation
• Total Power: ~3.3 KW | Power Supply: Single Phase
• Heater: 6 × 500 W with protection
• Motor & Fan: 0.25 HP motor, 1 fan
• Material: MS inner & outer body with 50 mm insulation
• Dimensions: 58″ × 26″ × 37″ | Weight: ~150 Kg

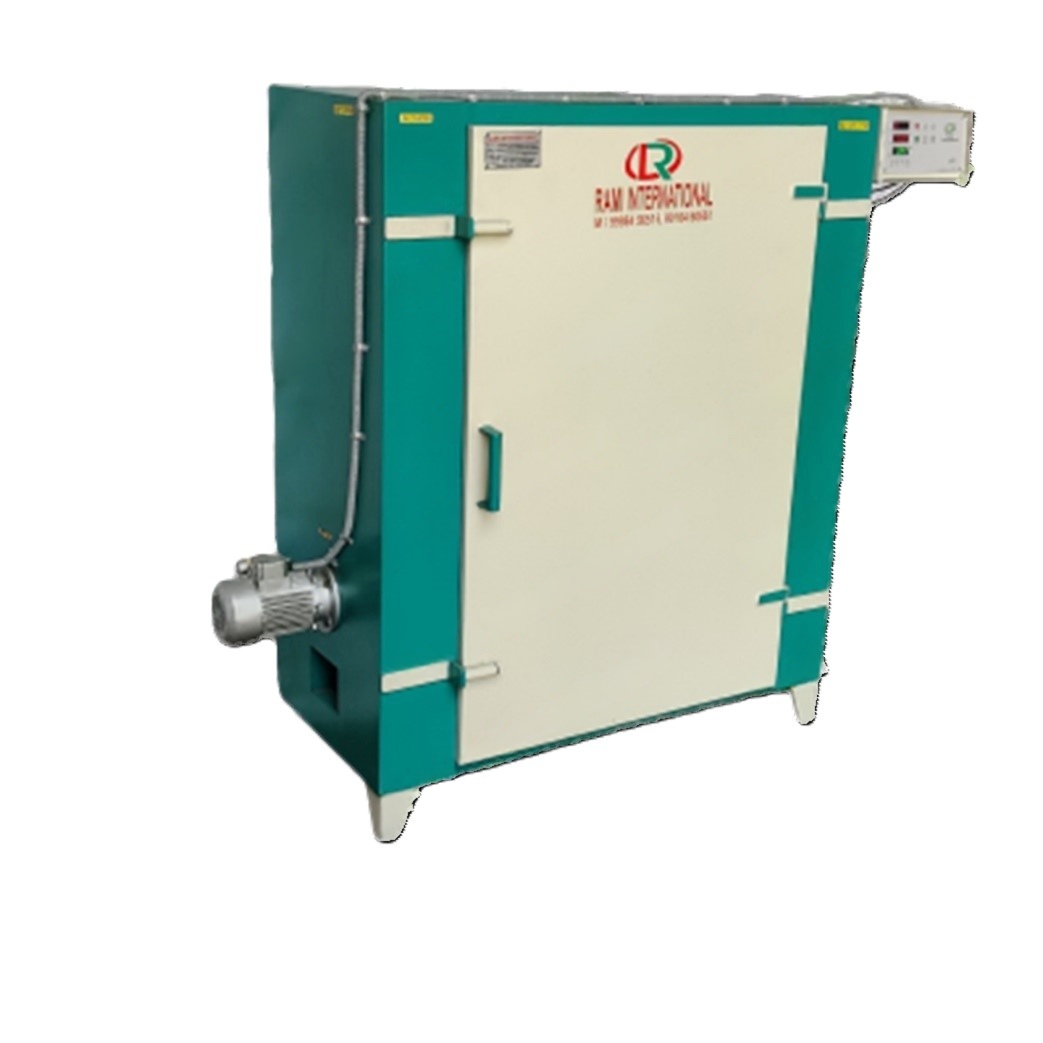

The 20 Tray Garlic Dryer Machine is used after bulb breaking and before garlic peeling to remove surface moisture using controlled heated air. It improves dry garlic peeling efficiency, ensures uniform drying, and is suitable for medium-capacity garlic processing units requiring stable and consistent results.

• 🔥 Heated air drying for uniform moisture removal
• 🧠 PLC-based control panel for precise time & temperature setting
• 🌡️ Controlled temperature up to 100°C
• 🌬️ Uniform hot air circulation across all trays
• ⚡ Plug-and-play, easy to operate
• 🔕 Silent & shock-proof operation
• 🚨 Auto cut-off with buzzer alert system
• 🧄 Enhances garlic peeling efficiency

• Capacity: 20 Aluminium trays
• Drying System: Heated air circulation
• Total Power: ~4.3 KW | Power Supply: Single Phase (220V)
• Heater: 0.5 KW × 8 Nos with protection
• Motor & Fan: 0.25 HP × 2 Nos
• Material: MS inner & outer body with 50 mm insulation
• Dimensions: 67″ × 26″ × 59″ | Weight: ~230 Kg

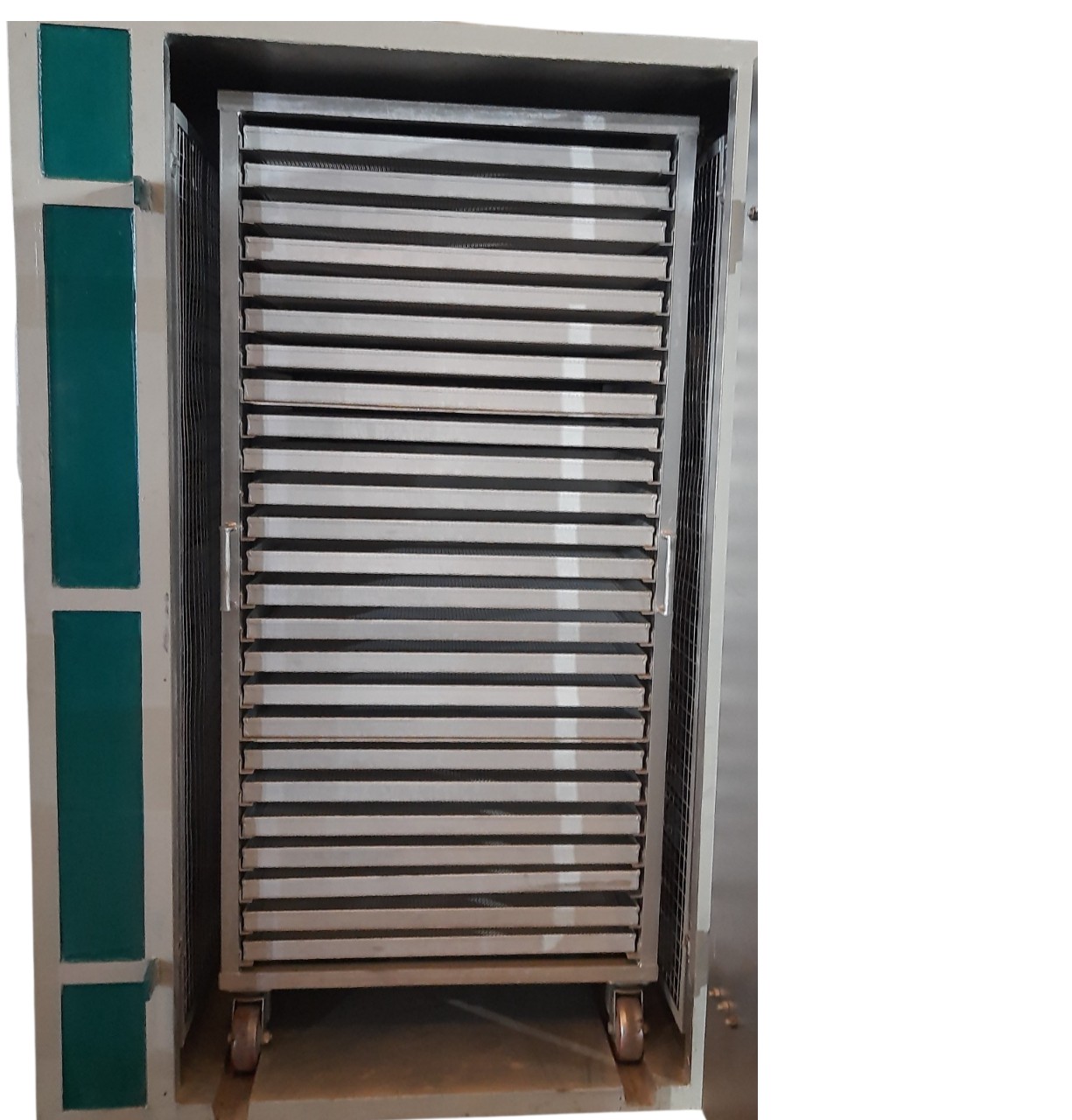

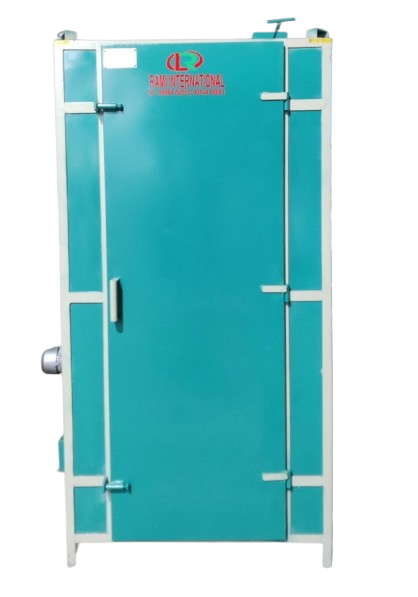

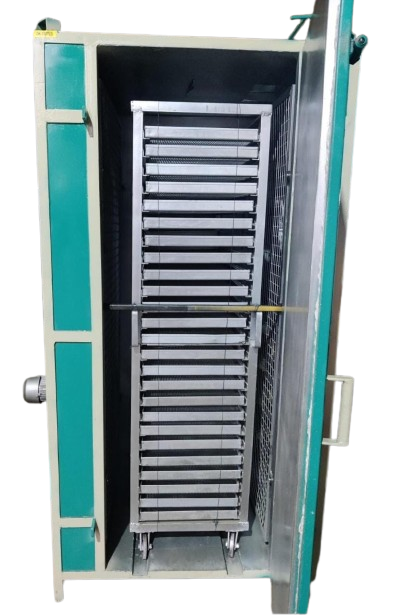

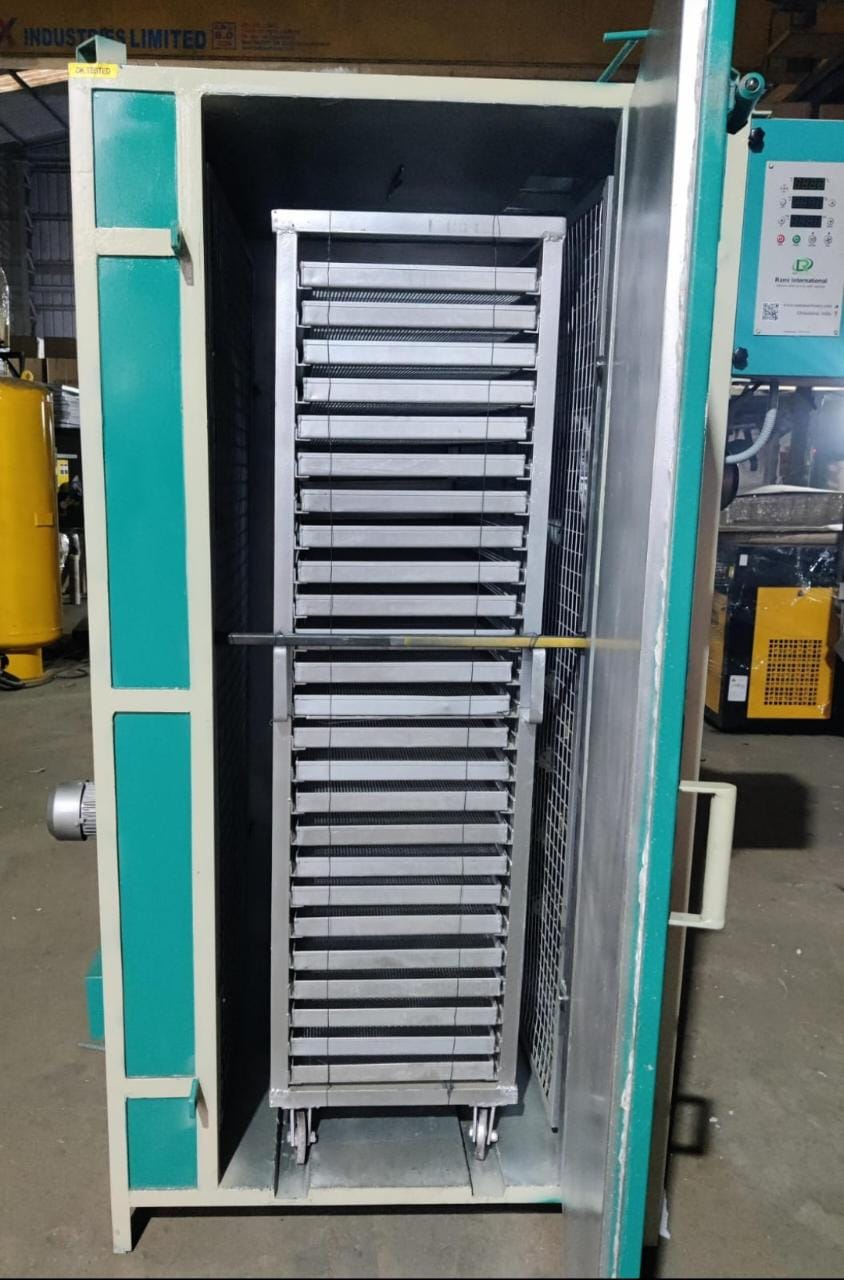

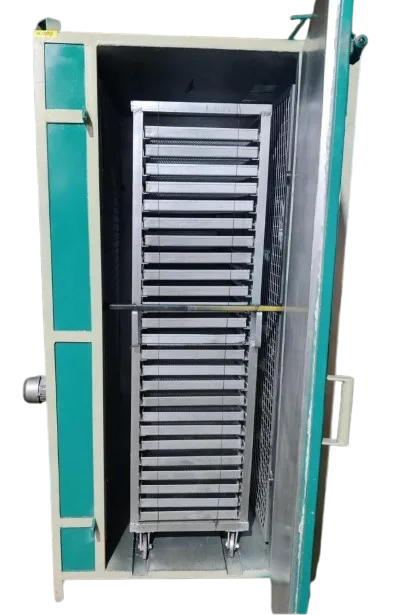

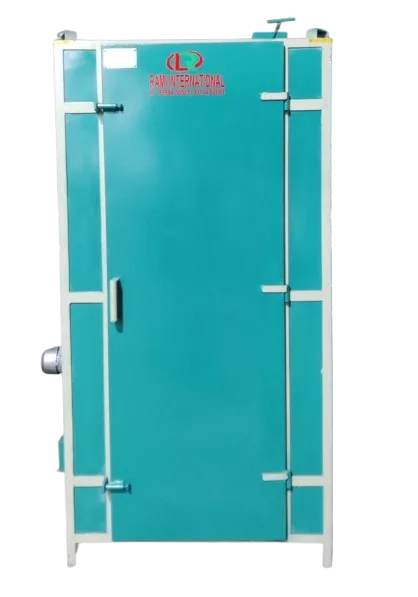

The 25 Tray Garlic Dryer Machine is used after garlic bulb breaking and before peeling to remove surface moisture using controlled heated air. It improves dry garlic peeling efficiency, ensures uniform drying, and is ideal for medium to large garlic processing units requiring higher batch capacity and consistent output.

• 🔥 Heated air drying for uniform moisture removal
• 🧠 PLC-based control panel for precise time & temperature control
• 🌡️ Temperature control up to 120°C
• 🌬️ Uniform hot air circulation across all trays
• ⚡ Plug-and-play for easy operation
• 🔕 Silent & shock-proof operation
• 🚨 Auto cut-off with buzzer alert system
• 🚚 Movable trolley for easy loading & unloading
• 🧄 Improves garlic peeling efficiency

• Capacity: 25 Aluminium trays with trolley
• Drying System: Heated air circulation
• Total Power: ~8.7 KW | Power Supply: Three Phase
• Heater: 1 KW × 8 Nos with protection
• Motor & Fan: 0.5 HP × 2 Nos
• Material: MS inner & outer body with 50 mm insulation
• Dimensions: 66″ × 45″ × 85″ | Weight: ~460 Kg

The 50 Tray Garlic Dryer Machine removes surface moisture from garlic using controlled heated air before peeling. It ensures uniform drying, improves garlic peeling efficiency, and is ideal for medium to large garlic processing units handling higher batch volumes with stable and reliable operation.

• 🔥 Uniform hot air circulation for consistent drying
• 🎛️ PLC-based control panel for precise time & temperature setting
• 🌡️ Thermocouple sensor for accurate temperature monitoring
• 🧄 Improves peeling efficiency before garlic peeling
• ⚡ Plug-and-play, easy to operate
• 🔇 Silent & shock-proof design
• 🚨 Auto cut-off with buzzer safety system
• 🚚 MS movable trolley for easy tray handling

• Capacity: 50 Aluminium trays with trolley
• Drying System: Electric heated air circulation
• Total Power: ~12.7 KW | Power Supply: Three Phase (415V)
• Heater: 1 KW × 12 Nos with protection
• Motor & Fan: 0.7 HP × 2 Nos
• Material: MS inner & outer body with 50 mm insulation
• Dimensions: 84″ × 48″ × 90″ | Weight: ~650 Kg | 🇮🇳 Made in India

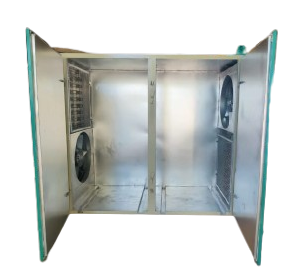

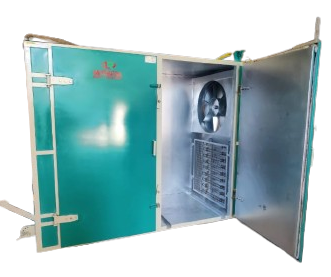

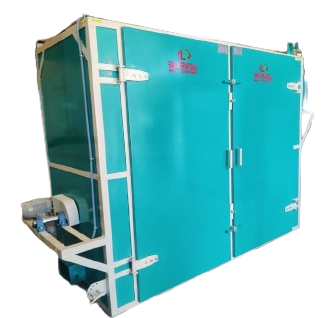

The 100 Tray Garlic Dryer Machine removes surface moisture from garlic using controlled heated air before peeling. It ensures uniform drying, improves peeling efficiency, and is ideal for medium to large garlic processing plants handling higher batch volumes with stable, continuous operation.

• 🔥 Uniform hot air circulation for even drying
• 🎛️ PLC-based control for precise time & temperature setting
• 🌡️ Thermocouple sensor for accurate temperature monitoring
• 🧄 Improves garlic peeling efficiency before peeling
• ⚡ Plug-and-play operation
• 🔇 Shock-proof & silent design
• 🚨 Auto cut-off with buzzer safety system
• 🚚 MS movable trolley system for easy tray handling

• Capacity: 100 Aluminium trays with 2 trolleys
• Drying System: Heated air circulation
• Total Power: ~19.5 KW | Power Supply: Three Phase (415V)
• Heater: 1 KW × 18 Nos with protection
• Motor & Fan: 1 HP × 2 Nos
• Material: MS inner & outer body with 50 mm insulation
• Dimensions: 162″ × 48″ × 89″ | Weight: ~1250 Kg | 🇮🇳 Made in India

The 200 Tray Garlic Dryer Machine removes surface moisture from garlic using controlled heated air before peeling. It ensures uniform drying across large batches, improves garlic peeling efficiency, and is ideal for medium to large garlic processing plants requiring stable, high-volume, continuous operation.

• 🔥 Uniform hot air circulation for even drying across all trays
• 🎛️ PLC-based control panel for precise time & temperature control
• 🌡️ Dual thermocouple sensors for accurate temperature monitoring
• 🧄 Improves garlic peeling efficiency before peeling
• ⚡ Plug-and-play operation
• 🔇 Silent & shock-proof industrial design
• 🚨 Auto cut-off with buzzer safety system
• 🚚 MS movable trolley system for easy tray handling

• Capacity: 200 Aluminium trays with 4 trolleys
• Drying System: Electric heated air circulation
• Total Power: ~39 KW | Power Supply: Three Phase (415V)
• Heater: 1 KW × 36 Nos with protection
• Motor & Fan: 2 HP × 2 motors, 4 fans
• Material: MS inner & outer body with 50 mm insulation
• Dimensions: 160″ × 87″ × 88″ | Weight: ~2150 Kg | 🇮🇳 Made in India

The 400 Tray Garlic Dryer Machine is built for large-scale garlic processing plants to remove surface moisture using controlled heated air before peeling. It ensures uniform drying across very high volumes, improves garlic peeling efficiency, and supports continuous, long-hour industrial operations with precise temperature control.

• 🔥 Uniform hot air circulation for even drying on all trays
• 🎛️ PLC-based control panel for precise time & temperature control
• 🌡️ Multiple thermocouple sensors for accurate temperature monitoring
• 🧄 Improves garlic peeling efficiency before peeling
• ⚡ Plug-and-play operation
• 🔇 Shock-proof & silent industrial design
• 🚨 Auto cut-off with buzzer safety system
• 🚚 Multiple MS movable trolleys for easy loading & unloading

• Capacity: 400 Aluminium trays with 8 trolleys
• Drying System: Electric heated air circulation
• Total Power: ~66 KW | Power Supply: Three Phase (415V)
• Heater: 2 KW × 30 Nos with protection
• Motor & Fan: 2 HP × 2 motors, 8 fans
• Material: MS inner & outer body with 50 mm insulation
• Space Required: 12 ft × 7.5 ft × 10 ft | 🇮🇳 Made in India

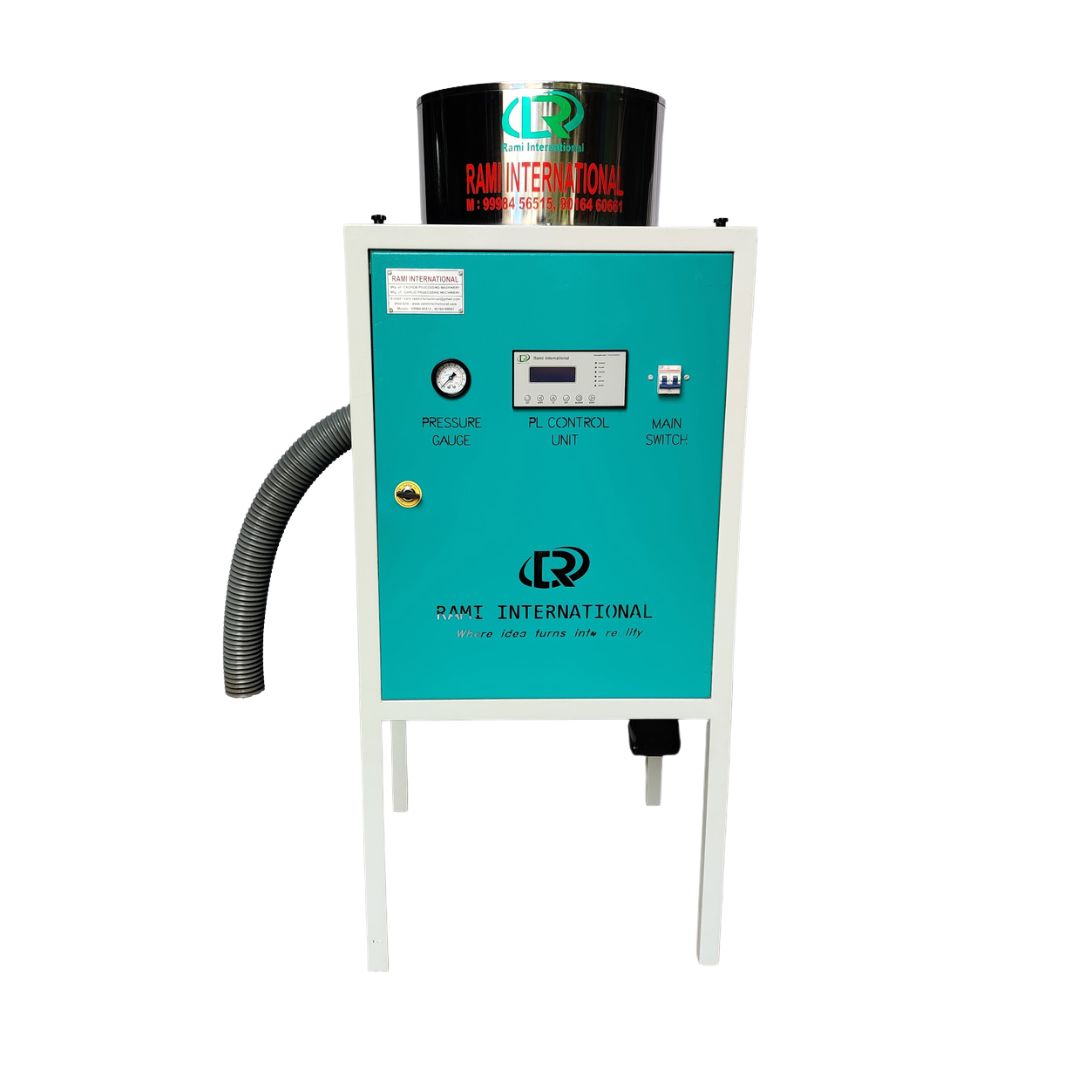

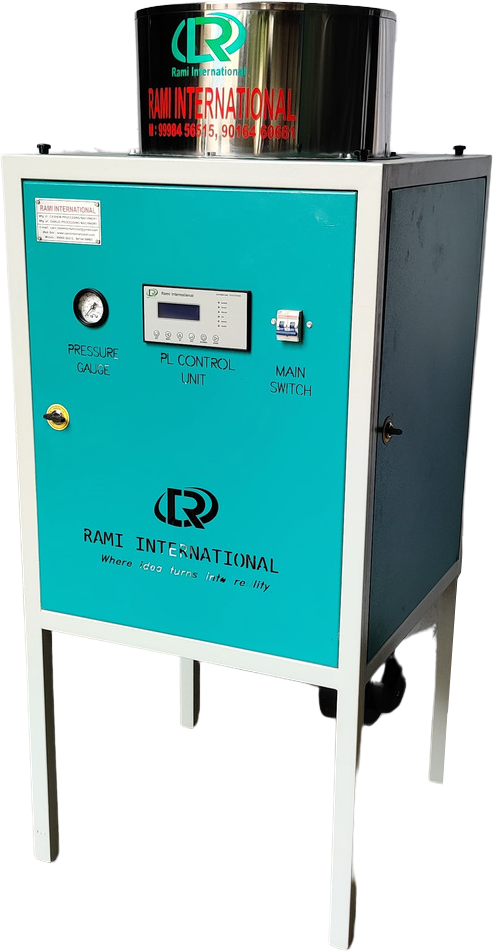

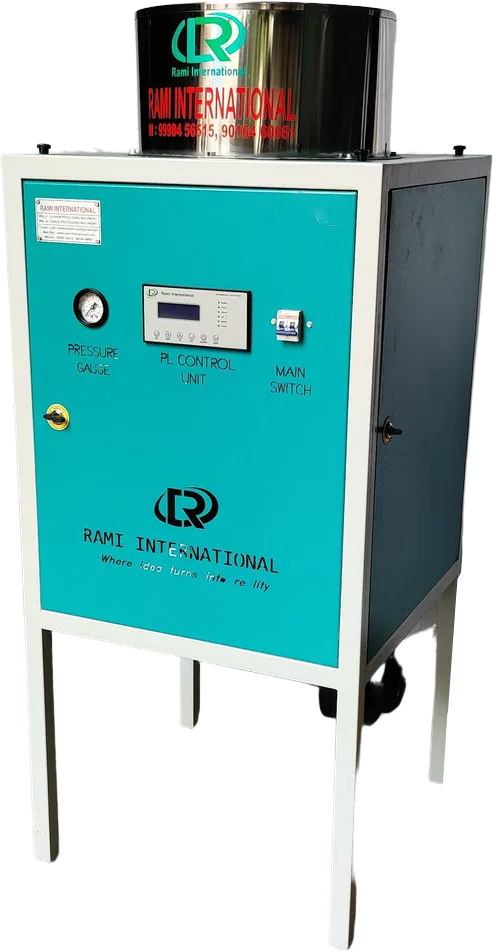

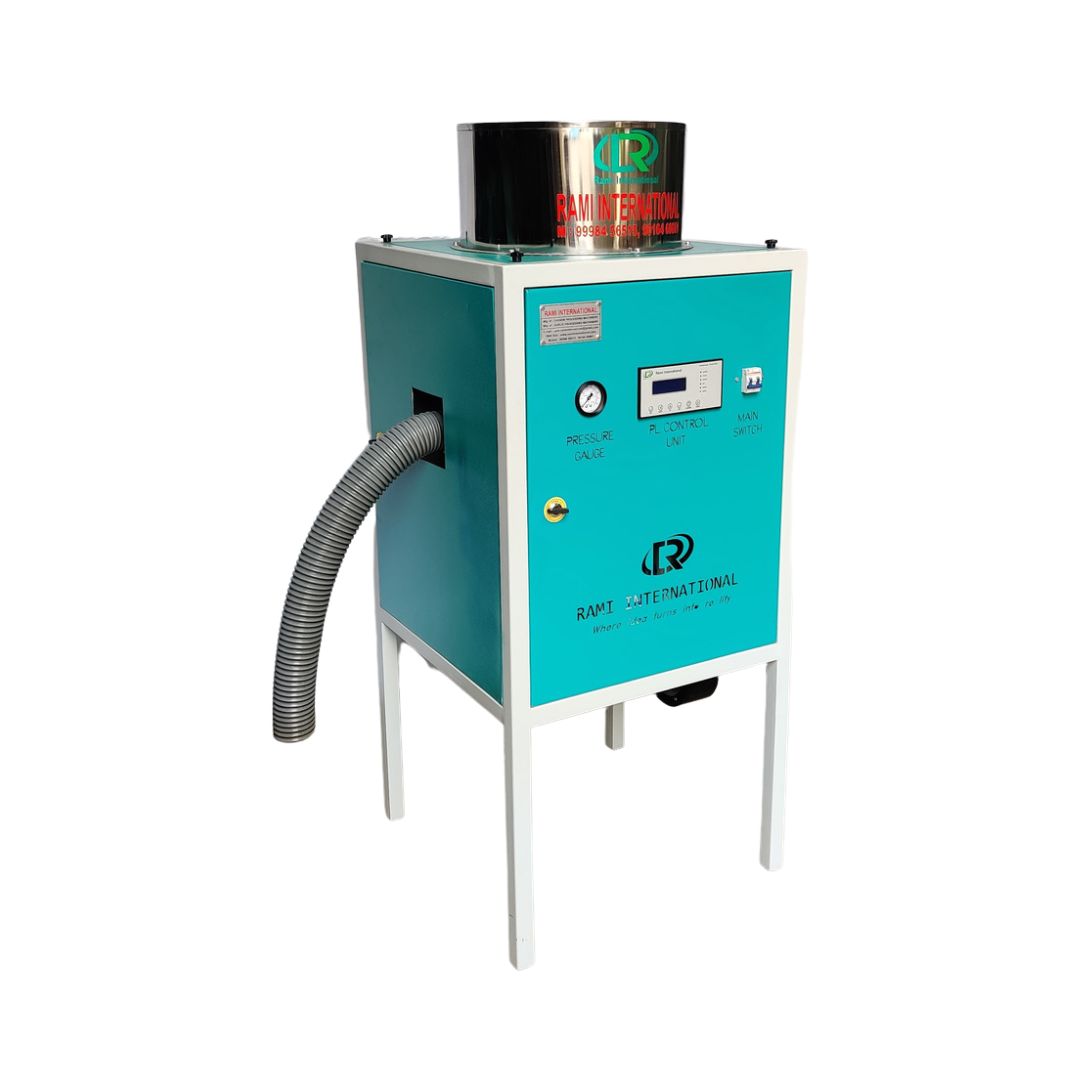

Removes garlic skin using pneumatic dry peeling technology without water or oil. Delivers hand-like peeling results with clean, hygienic cloves and no damage, making it ideal for low-investment garlic peeling businesses and small processing units.

• ✔ Dry peeling technology (compressed air, no water or oil)
• ✔ No damage to garlic cloves (hand-like peeling quality)
• ✔ High hygiene standards (food-grade, chemical-free process)
• ✔ Up to 98% peeling efficiency (depending on garlic quality)
• ✔ Easy to operate (unskilled labour can run the machine)
• ✔ Very low investment model for new entrepreneurs
• ✔ Compact & space-saving design
• ✔ Low maintenance with long service life
• ✔ Scalable capacity for future business growth

• Capacity: 30 Kg/hr
• Model / Brand: RIGP30 – RAMI
• Peeling Type: Dry pneumatic air-based peeling (no clove damage)
• Build & Power: SS304 inner body, 3 KW inbuilt heater, single phase; requires 5 HP piston or 10 HP screw air compressor (Made in India)

Removes garlic skin using pneumatic dry peeling technology without water or oil. Delivers hand-like peeling quality with clean cloves, no damage, and high hygiene—ideal for small to medium processing units looking for higher output and consistent daily production.

• ✔ Dry peeling technology using compressed air (no water or oil)
• ✔ No damage to garlic cloves (hand-like peeling quality)
• ✔ High hygiene standards (water-free, chemical-free process)
• ✔ Up to 98% peeling efficiency (depending on garlic quality)
• ✔ Higher output suitable for small to medium production volumes
• ✔ Easy to operate (unskilled labour can run the machine)
• ✔ Moderate investment model (ideal upgrade from 30 KG)
• ✔ Low maintenance and reliable for daily use
• ✔ Scalable for future business growth

• Capacity: 50 Kg/hr
• Model / Brand: RIGP50 – RAMI
• Peeling Type: Dry pneumatic air-based peeling (no clove damage)
• Build & Power: SS304 inner body, 3 KW inbuilt heater, single phase; requires 10 HP screw air compressor (Made in India)

Removes garlic skin using pneumatic dry peeling technology without water or oil. Designed for commercial-scale operations, it delivers clean, hand-like peeled cloves with no damage and high hygiene, making it ideal for growing garlic processing businesses that require higher output and daily production.

• ✔ Dry peeling technology using compressed air (no water or oil)
• ✔ No damage to garlic cloves (clean, hand-like peeling results)
• ✔ High hygiene standards (water-free, chemical-free, food-safe process)
• ✔ Up to 98% peeling efficiency (depending on garlic quality)
• ✔ Commercial output capacity for continuous daily operation
• ✔ Easy to operate (unskilled labour can run the machine)
• ✔ Designed for commercial-scale garlic peeling businesses
• ✔ Low maintenance and durable for long working hours

• Capacity: 100 Kg/hr
• Model / Brand: RIGP100 – RAMI
• Peeling Type: Dry pneumatic air-based peeling (no clove damage)
• Build & Power: SS304 inner body, 3 KW inbuilt heater, single phase; requires 15 HP screw air compressor (Made in India)

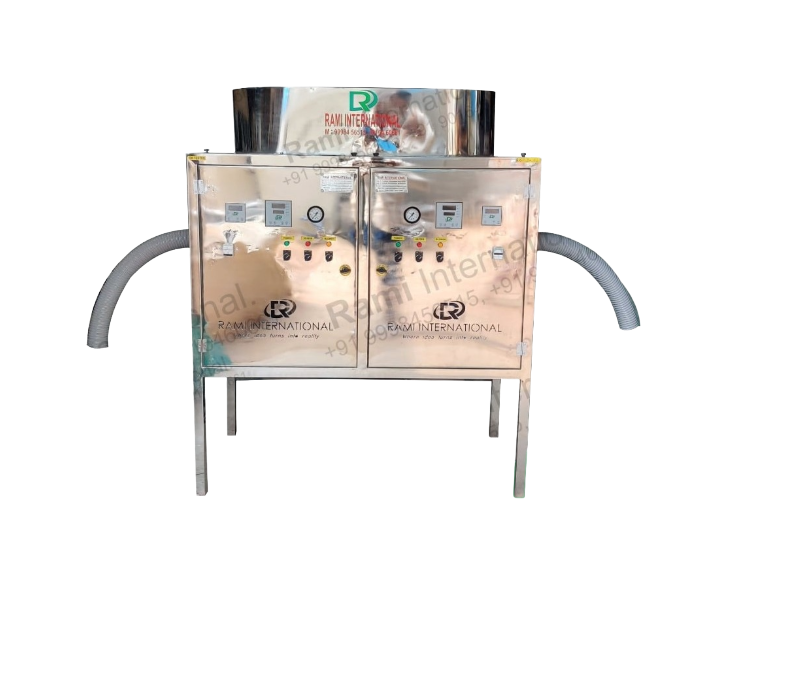

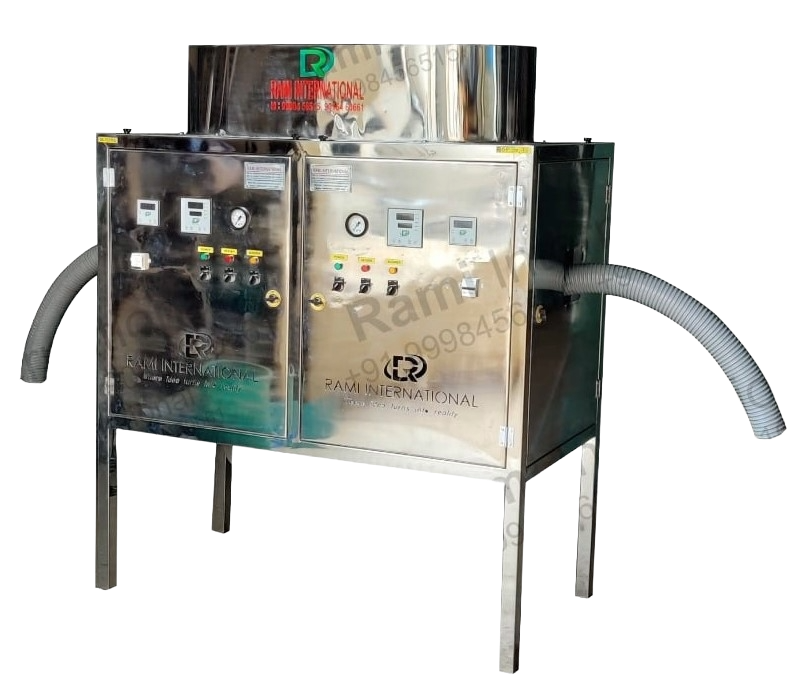

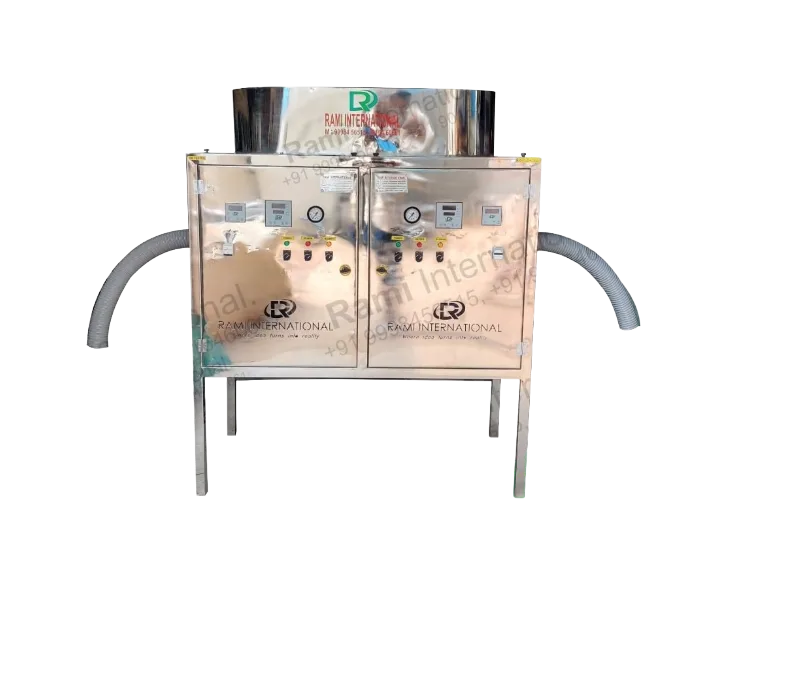

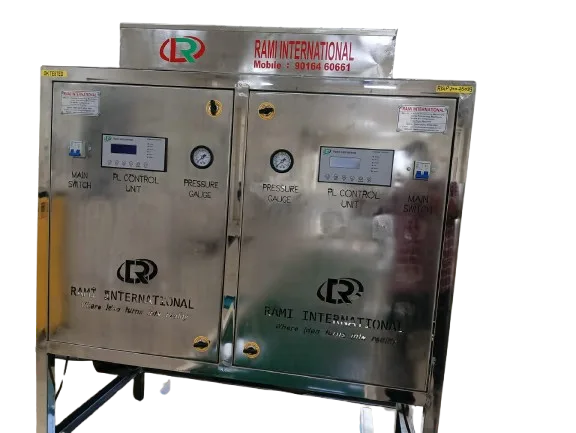

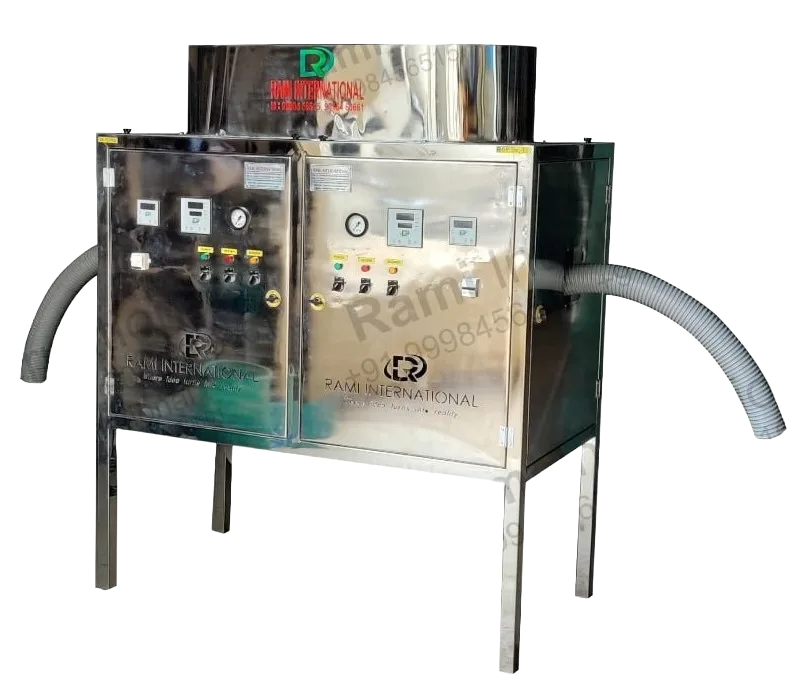

Removes garlic skin using pneumatic dry peeling technology without water or oil. Built for high-capacity commercial operations, it delivers clean, hand-like peeled cloves with no damage and high hygiene—ideal for medium to large garlic processing units requiring stable, high-volume daily output.

• ✔ Dry peeling technology using compressed air (no water or oil)
• ✔ No damage to garlic cloves (clean, uniform, hand-like peeling)
• ✔ High hygiene standards (water-free, chemical-free, food-grade process)
• ✔ Up to 98% peeling efficiency (depending on garlic quality)
• ✔ High-capacity commercial output for large daily volumes
• ✔ Easy to operate (unskilled labour can run the machine)
• ✔ Heavy-duty build for long working hours
• ✔ Low maintenance with reliable, continuous performance

• Capacity: 200 Kg/hr
• Model / Brand: RIGP200 – RAMI
• Peeling Type: Dry pneumatic air-based peeling (no clove damage)
• Build & Power: SS304 food-grade body, 4 KW heater, single phase; requires 30 HP screw air compressor (Made in India)

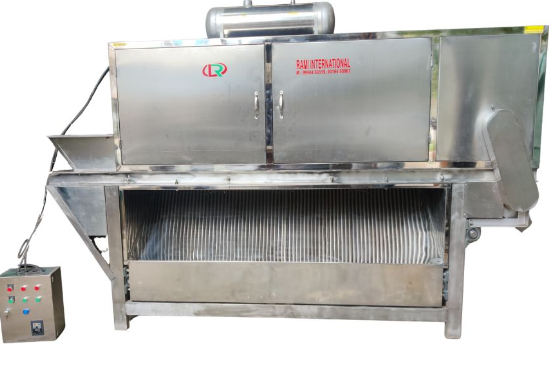

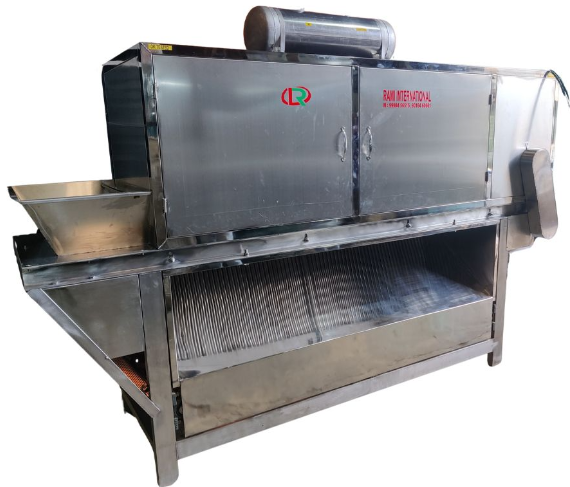

Designed for high-capacity, continuous garlic peeling operations. This chain-type, horizontal dry peeling machine delivers non-stop output with consistent quality, making it ideal for commercial and industrial garlic processing units that require uninterrupted production and scalable capacity.

• ✔ Chain type continuous peeling for non-stop output
• ✔ Horizontal processing design for smooth, stable material flow
• ✔ No damage to garlic cloves (maintains clove quality and shape)
• ✔ Up to 98% peeling efficiency (depending on garlic quality)
• ✔ Dry peeling technology (no water, no oil, hygienic process)
• ✔ VFD operated chain system for smooth and controlled operation
• ✔ Heavy-duty industrial build for long working hours
• ✔ High productivity model suitable for large-scale operations
• ✔ Low maintenance and easy operation

• Capacity: 300 Kg/hr
• Model / Brand: RIGP300 (Chain Type) – RAMI
• Peeling Type: Dry chain type, horizontal continuous output
• Power & Build: VFD-operated SS304 food-grade chain, 2 HP × 2 motors, three phase; requires 60 HP screw air compressor (≈450 Kg, Made in India 🇮🇳)

• Length: 102 Inches
• Width: 30 Inches
• Height: 77 Inches

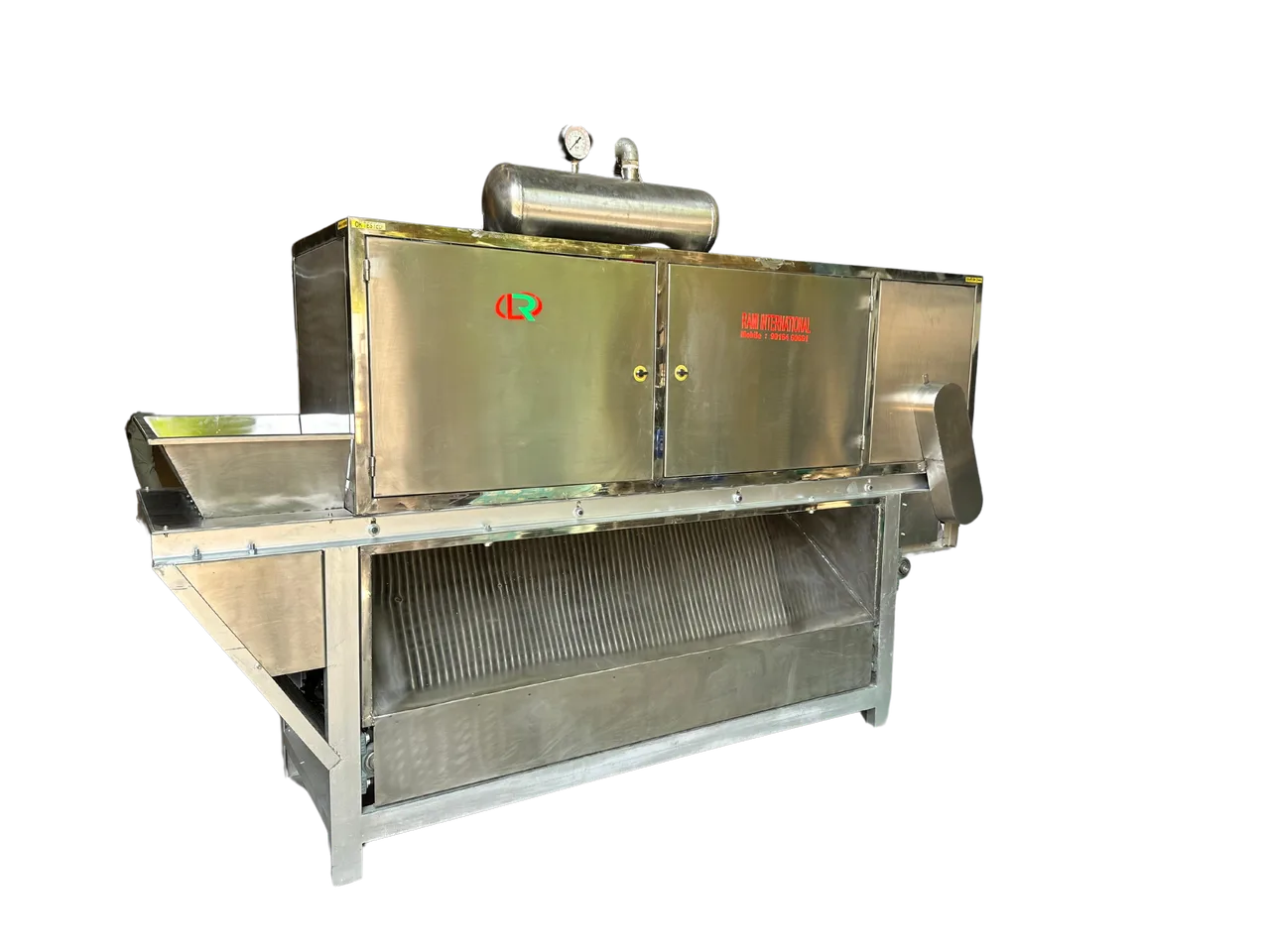

Designed for higher-capacity, continuous garlic peeling operations. This chain-type, horizontal dry peeling machine delivers stable, uninterrupted output with consistent quality—ideal for large-scale commercial and industrial units handling heavy daily volumes.

• ✔ Chain type continuous peeling for high-capacity, non-stop output
• ✔ Horizontal processing design for smooth, stable heavy-volume flow
• ✔ No damage to garlic cloves (uniform shape and quality)
• ✔ Up to 98% peeling efficiency (depending on garlic quality)
• ✔ Dry peeling technology (no water, no oil, hygienic process)
• ✔ VFD operated chain system for smooth, controlled operation
• ✔ Heavy-duty industrial build for long working hours
• ✔ Very high productivity for large-scale processing
• ✔ Low maintenance and easy operation

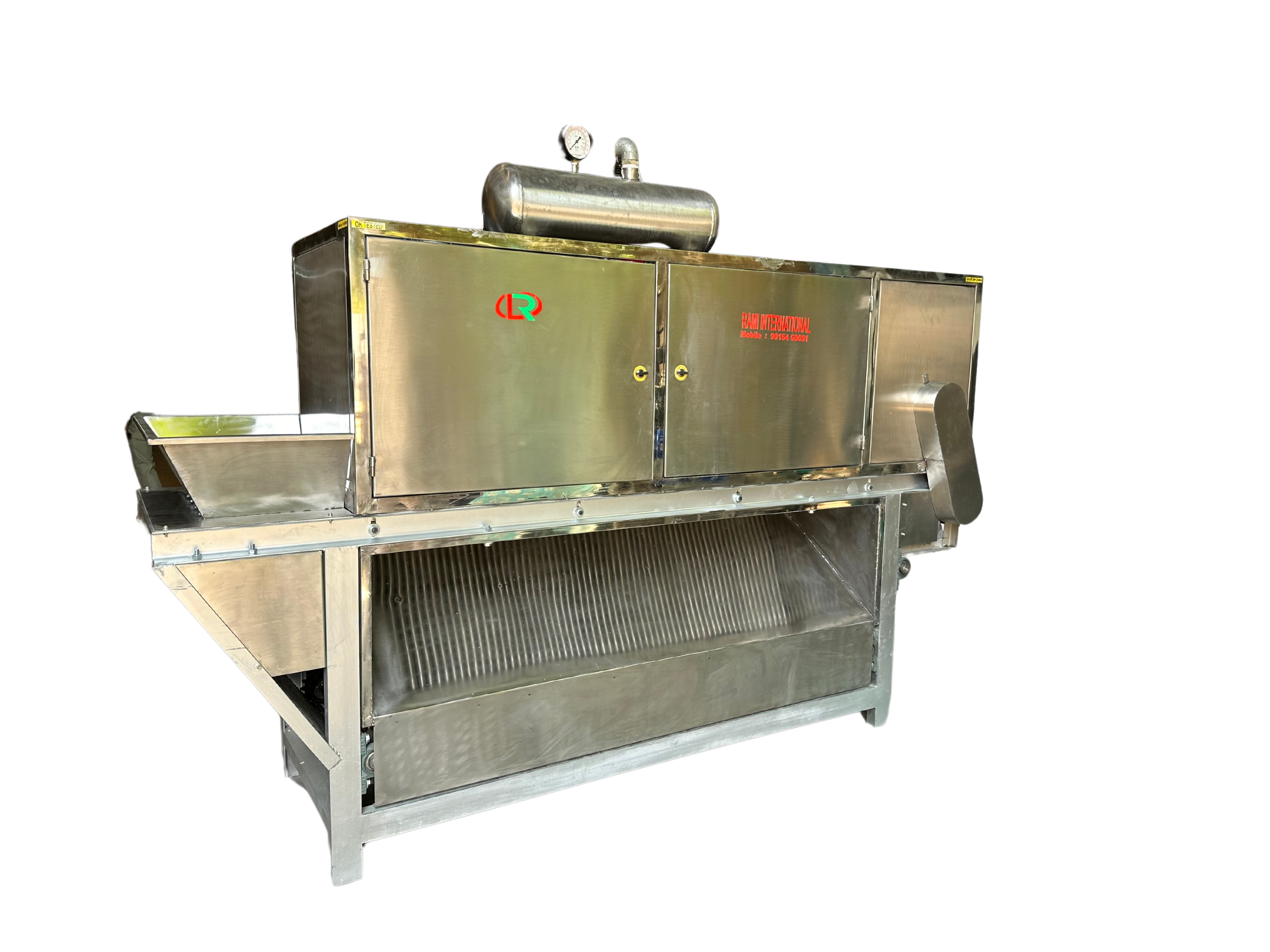

• Capacity: 500 Kg/hr
• Model / Brand: RIGP500 (Chain Type) – RAMI
• Peeling Type: Dry chain type, horizontal continuous output
• Power & Build: VFD-operated SS304 food-grade chain, 2 HP × 2 motors, three phase; requires 75 HP screw air compressor (≈550 Kg, Made in India 🇮🇳)

• Length: 111 Inches
• Width: 31 Inches
• Height: 87 Inches

Designed for very high-capacity, continuous garlic peeling operations. This chain-type, horizontal dry peeling machine delivers maximum output with stable, uninterrupted flow—ideal for large commercial and industrial units running heavy volumes and round-the-clock production.

• ✔ Chain type continuous peeling for ultra high-capacity, non-stop output
• ✔ Horizontal processing design for stable, smooth extreme-volume flow
• ✔ No damage to garlic cloves (uniform shape and quality)
• ✔ Up to 98% peeling efficiency (depending on garlic quality)
• ✔ Dry peeling technology (no water, no oil, hygienic industrial process)
• ✔ VFD operated chain system for precision-controlled, heavy-load operation
• ✔ Extra heavy-duty industrial build for long-hour / 24×7 use
• ✔ Ultra high productivity for very large-scale processing
• ✔ Low maintenance and easy operation

• Capacity: 1000 Kg/hr
• Model / Brand: RIGP1000 (Chain Type) – RAMI
• Peeling Type: Dry chain type, horizontal continuous output
• Power & Build: VFD-operated SS304 food-grade chain, 2 HP × 2 motors, three phase; requires 100 HP screw air compressor (≈550 Kg, Made in India 🇮🇳)

• Length: 111 Inches
• Width: 31 Inches
• Height: 87 Inches

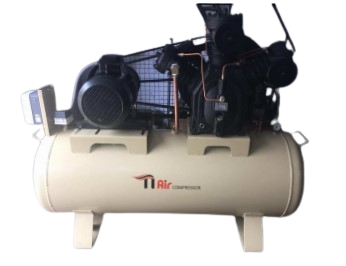

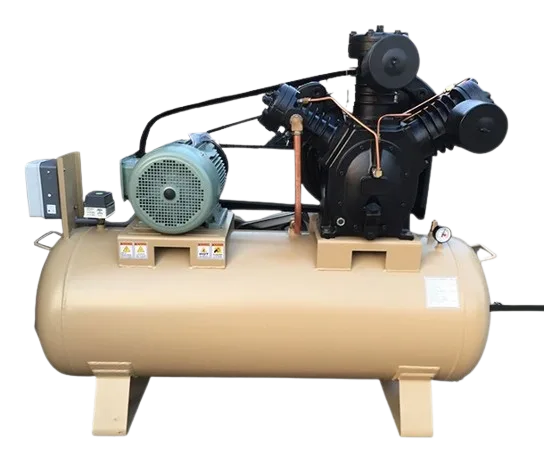

The 5 HP Reciprocating Air Compressor is designed to provide the required air pressure for small-capacity dry garlic peeling machines. It supplies compressed air to remove garlic skin effectively during the peeling process.

• ✔ 5 HP Reciprocating (Piston) Air Compressor
• ✔ Single Phase Power Supply
• ✔ Automatic cut-off system
• ✔ Standard pressure gauge
• ✔ Suitable for basic peeling operations
• ✔ Recommended for 30 KG Dry Garlic Peeling Machine

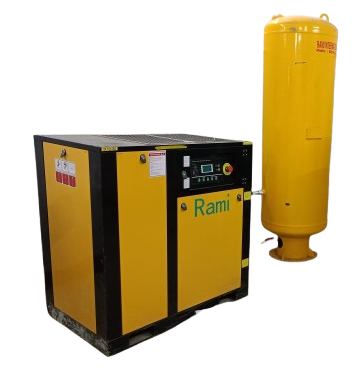

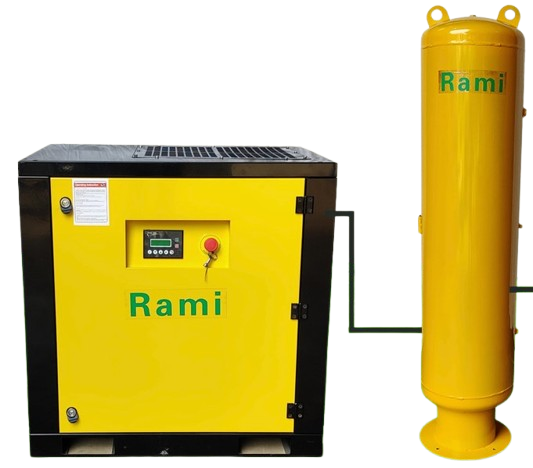

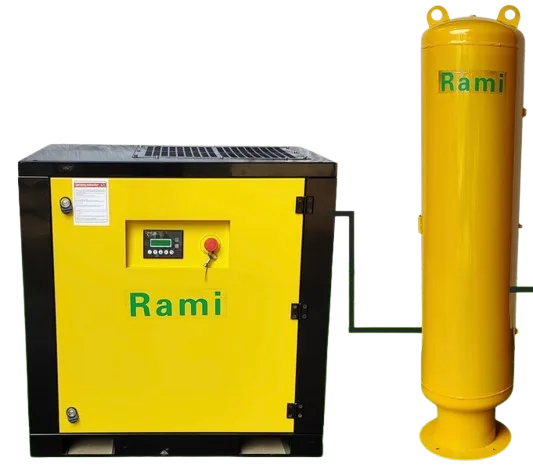

The 10 HP Screw Air Compressor is designed to provide stable air pressure for small-to-medium capacity dry garlic peeling machines. It ensures consistent airflow for efficient peeling.

• ✔ 10 HP Screw Air Compressor
• ✔ 300 LTR Low Pressure Air Receiver Tank
• ✔ Automatic cut-off & control system
• ✔ Silent and energy-efficient operation
• ✔ Continuous air supply for stable peeling
• ✔ Low maintenance and long service life
• ✔ Suitable for 50 KG garlic peeling machine

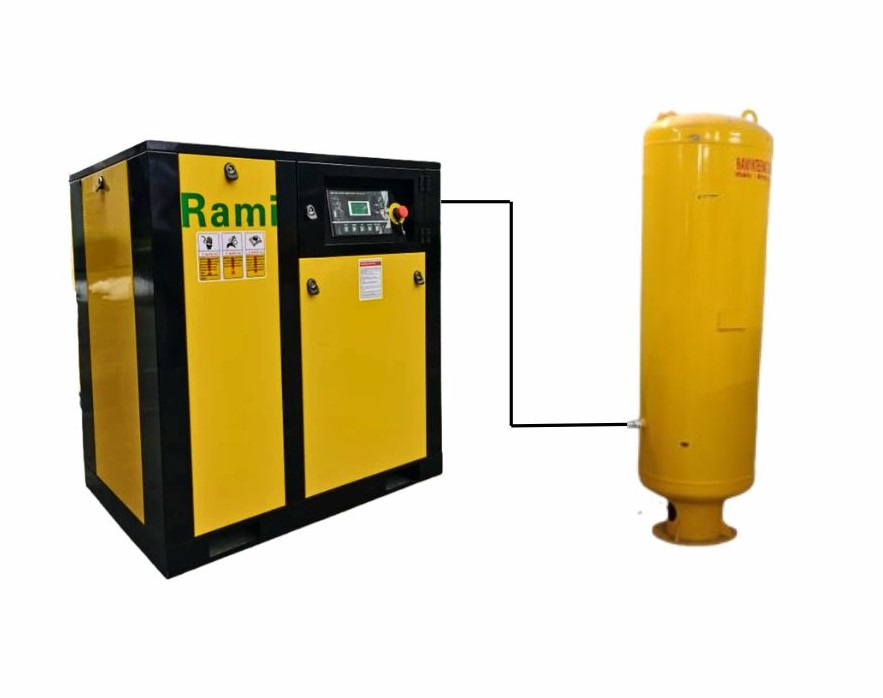

The 15 HP Screw Air Compressor is designed to deliver higher and more stable air pressure for medium-to-high capacity dry garlic peeling machines. It comes with a 500 LTR low-pressure air receiver tank, ensuring smooth airflow, pressure stability, and consistent peeling performance. With silent operation, an automatic control panel, and an inbuilt cooling system, this compressor is suitable for 24×7 continuous operation without overheating, making it ideal for commercial garlic peeling plants.

• ✔ 15 HP Screw Air Compressor
• ✔ 500 LTR Low Pressure Air Receiver Tank
• ✔ Automatic cut-off & control system
• ✔ Silent and energy-efficient operation
• ✔ Continuous air supply for stable peeling
• ✔ Low maintenance and long service life
• ✔ Designed for long working hours
• ✔ Suitable for 100 KG garlic peeling machine

The 30 HP Screw Air Compressor is designed to deliver high-volume, continuous, and stable air pressure for larger dry garlic peeling machines. It is supplied with a 1000 LTR low-pressure air receiver tank, which helps maintain constant airflow and pressure balance during long working hours. With silent operation, an automatic control panel, and a robust inbuilt cooling system, this compressor is ideal for 24×7 industrial operation where reliability and performance are critical.

• ✔ 30 HP Screw Air Compressor
• ✔ 1000 LTR Low Pressure Air Receiver Tank
• ✔ Automatic cut-off & control system
• ✔ Silent and energy-efficient operation
• ✔ Continuous and stable air supply
• ✔ Low maintenance & long service life
• ✔ Designed for heavy-duty, long working hours
• ✔ Suitable for 200 KG dry garlic peeling machine

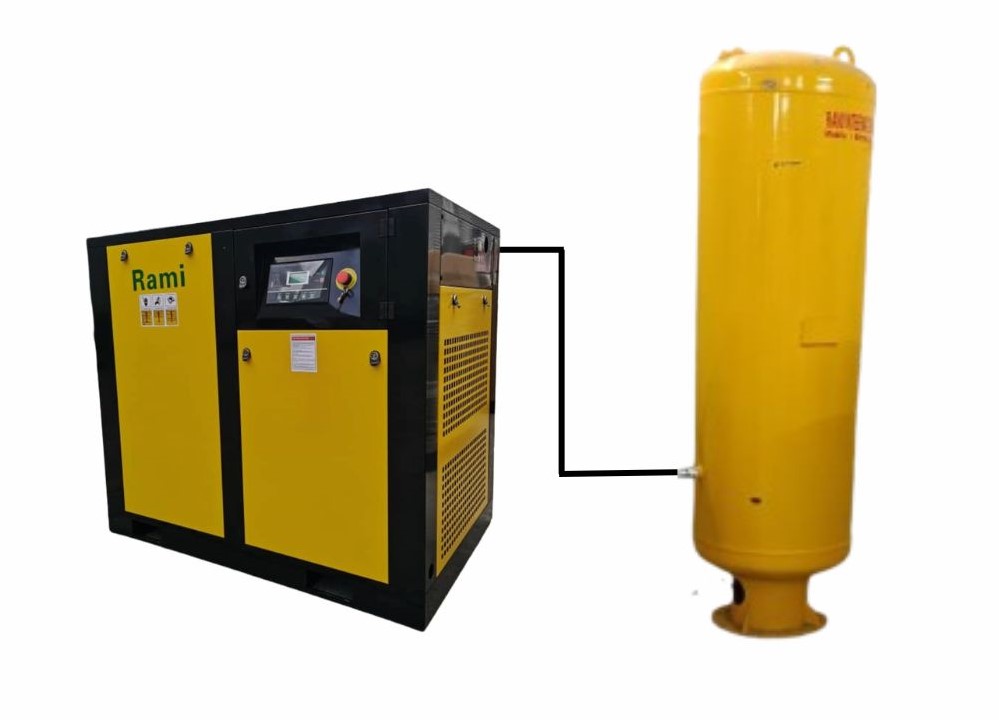

The 60 HP Screw Air Compressor is designed for very high-capacity, continuous air demand required in large garlic peeling plants and chain-type dry garlic peeling machines. It comes with a 1000 LTR low-pressure air receiver tank, ensuring steady airflow and pressure stability during heavy-duty operations. This compressor features silent operation, an automatic control panel, and a high-performance cooling system, making it suitable for 24×7 industrial use without overheating or performance drop.

• ✔ 60 HP Screw Air Compressor
• ✔ 1000 LTR Low Pressure Air Receiver Tank
• ✔ Automatic control panel & cut-off system
• ✔ Silent and energy-efficient operation
• ✔ Continuous, high-volume air supply
• ✔ Low maintenance & long service life
• ✔ Designed for heavy-duty industrial working hours
• ✔ Suitable for 300 KG Chain Type Dry Garlic Peeling Machine

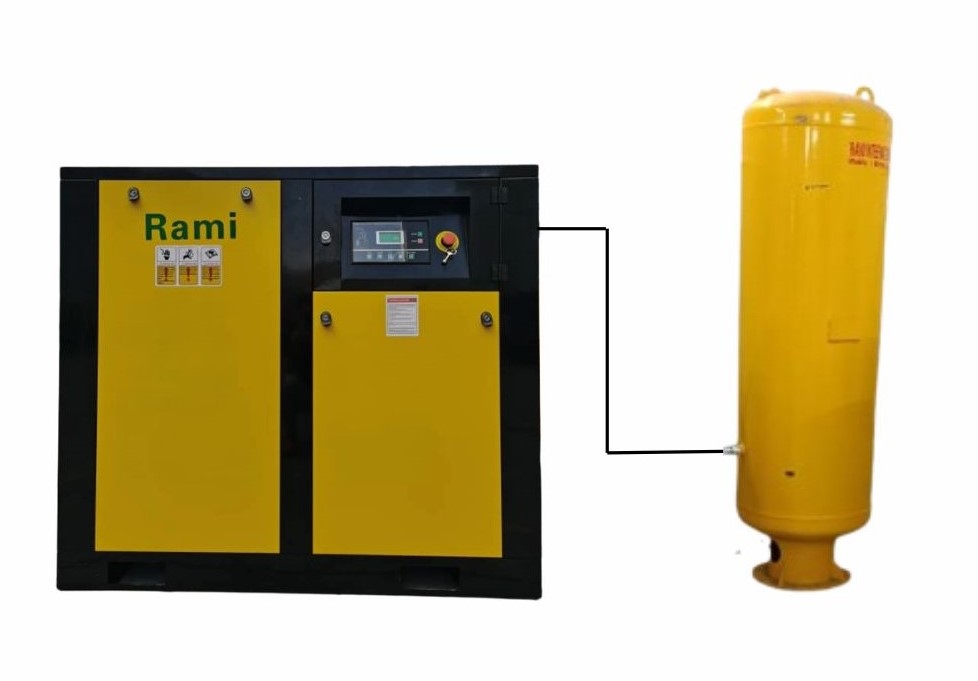

The 75 HP Screw Air Compressor is designed to handle very high air demand for large-capacity garlic peeling plants and chain type dry garlic peeling machines. It is supplied with a 2000 LTR low-pressure air receiver tank, which ensures stable airflow, pressure balance, and smooth peeling performance during long working hours. With silent operation, an automatic control panel, and a heavy-duty cooling system, this compressor is suitable for 24×7 industrial operation, delivering reliable and consistent air supply.

• ✔ 75 HP Screw Air Compressor
• ✔ 2000 LTR Low Pressure Air Receiver Tank
• ✔ Automatic control panel & cut-off system
• ✔ Silent and energy-efficient operation
• ✔ Continuous, high-volume air supply
• ✔ Low maintenance & long service life
• ✔ Designed for heavy-duty industrial usage
• ✔ Suitable for 500 KG Chain Type Dry Garlic Peeling Machine

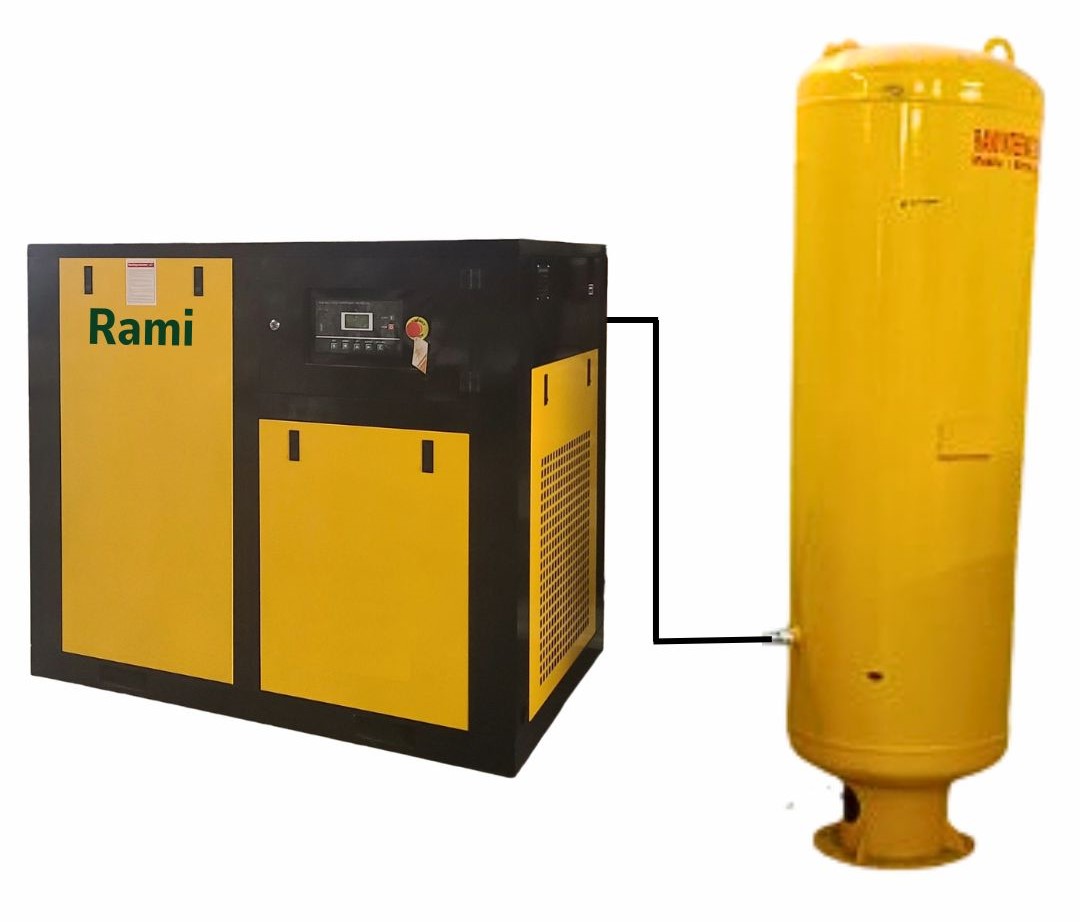

The 100 HP PM VFD Screw Air Compressor is engineered for very high-capacity, continuous air demand in large industrial garlic peeling plants. It comes with a 2500 LTR low-pressure air receiver tank, ensuring stable airflow, pressure balance, and uninterrupted peeling performance during long working hours. Equipped with PM VFD technology, this compressor delivers energy-efficient operation, precise pressure control, and reduced power consumption. With silent operation, an automatic control panel, and a heavy-duty cooling system, it is ideal for 24×7 industrial use.

• ✔ 100 HP PM VFD Screw Air Compressor
• ✔ 2500 LTR Low Pressure Air Receiver Tank
• ✔ PM VFD Technology for energy saving
• ✔ Automatic control panel & cut-off system
• ✔ Silent, stable, and high-volume air supply
• ✔ Low maintenance & long service life
• ✔ Designed for continuous heavy-duty operation
• ✔ Suitable for 1000 KG Chain Type Dry Garlic Peeling Machine

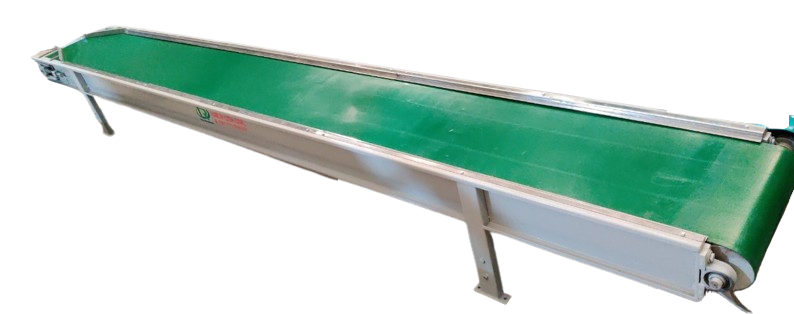

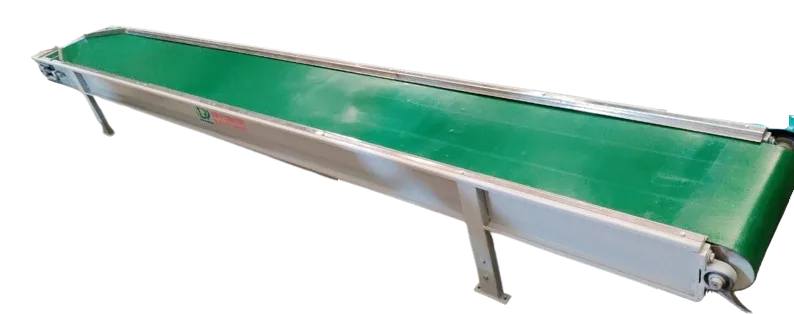

The Garlic Belt Conveyor is installed below the peeling machine to transfer peeled garlic for sorting and inspection at a slow, continuous speed.

• Machine Type: Garlic Belt Conveyor
• Belt Size: 1.5 FT (Width) × 10 FT (Length)
• Belt Material: Food-grade approved belt
• Operation: Continuous
• Speed: Slow & controlled
• Application: Sorting & inspection after garlic peeling

• 🧄 Continuous transfer of peeled garlic after peeling machine
• 👀 Easy manual sorting & inspection from both sides
• ❌ Quick removal of unpeeled or damaged cloves
• ⚙️ Slow-speed belt for accurate sorting
• 🧼 Hygienic food-grade belt for safe processing
• 🏭 Ideal add-on for garlic peeling & packing units

The Garlic Belt Conveyor is designed for higher-capacity garlic plants, give more space and time for efficient sorting & inspection before packing.

• Machine Type: Garlic Belt Conveyor
• Belt Size: 2 FT (Width) × 15 FT (Length)
• Belt Material: Food-grade approved belt
• Operation: Continuous
• Speed: Slow & controlled for sorting
• Application: Sorting & inspection after garlic peeling

• 🧄 Ideal for high-capacity garlic peeling plants
• 👥 More working space for multiple operators
• 👀 Better inspection due to longer belt length
• ❌ Easy removal of unpeeled or defective cloves
• 🧼 Hygienic food-grade conveyor belt
• 🏭 Heavy-duty structure for continuous operation

• 100 KG Dry Garlic Peeling Machine
• 200 KG Dry Garlic Peeling Machine

The Garlic Belt Conveyor is designed for large-scale garlic plants, offering wider sorting space and large inspection time for operations before final packing.

• Machine Type: Garlic Belt Conveyor
• Belt Size: 3 FT (Width) × 20 FT (Length)
• Belt Material: Food-grade approved belt
• Motor Power: 2 HP
• Power Consumption: ~0.5 KW
• Operation: Continuous
• Application: Sorting & inspection after garlic peeling

• 🧄 Ideal for high-volume garlic peeling plants
• 👥 Wide belt for multiple operators on both sides
• 👀 Long conveyor length for better inspection & sorting
• ❌ Easy removal of unpeeled or defective garlic
• 🧼 Hygienic food-grade belt for safe processing
• 🏭 Heavy-duty industrial structure for continuous operation

• Chain Type Garlic Peeling Machines

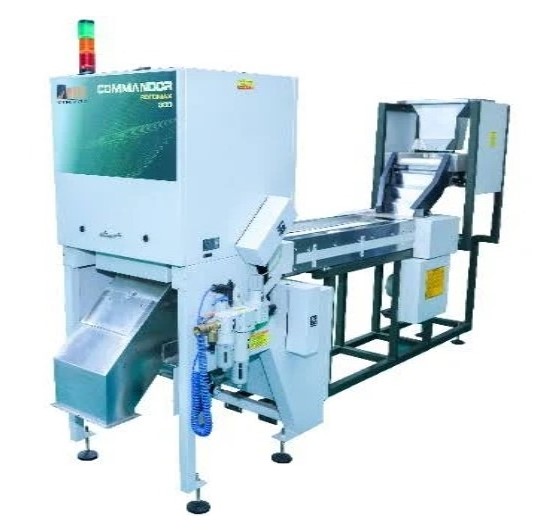

The 300 MM Belt Color Sorting Machine is designed to automatically separate unpeeled garlic, defective cloves, and foreign particles from peeled garlic using advanced color detection technology. After the garlic peeling process, a small percentage of garlic may remain unpeeled. This machine detects those differences using high-speed image scanning and automatically separates them, reducing manual sorting and saving labor cost.

• Machine Type: Belt Type Color Sorting Machine
• Belt Width: 300 MM
• Machine Size: 3711.7 × 1000 × 1825.7 mm
• Product Output Capacity: 200 KG per Hour
• Sorting Range: 3 mm – 25 mm
• Compressor Requirement: 7 HP – 10 HP
• Sorting Technology: AI Image Scanning Technology
• Material Contact Parts: Stainless Steel Hopper & Receiver
• Sorting Method: Belt Drive Delivery System

• 🧄 Automatically separates unpeeled garlic and defective cloves
• 🎯 Advanced AI-based image scanning for precise color sorting
• ⚙️ Belt drive system for smooth and stable product flow
• 👀 High sorting accuracy with minimal product damage
• 🏭 Reduces manpower required for manual sorting
• 🧼 Stainless steel hopper and receiver for hygienic operation
• 🔄 Continuous sorting suitable for garlic processing plants

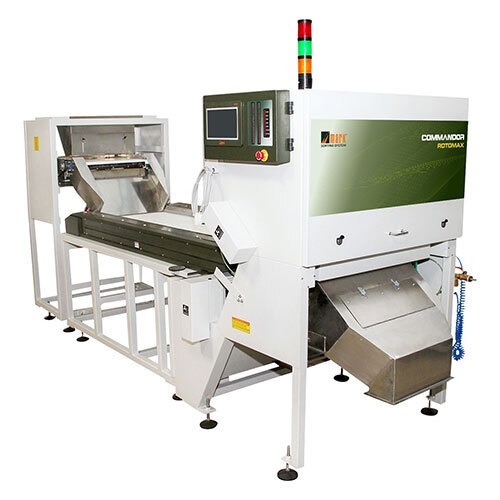

The 600 MM Belt Color Sorting Machine is designed for high-capacity garlic processing plants that require fast and accurate sorting of peeled garlic. It detects unpeeled garlic, stones, foreign particles, and defective cloves using advanced AI image recognition technology. The machine automatically separates rejected material, ensuring clean and uniform garlic output for packing or further processing.

• Machine Type: Belt Type Color Sorting Machine
• Belt Width: 600 MM
• Machine Size: 3657 × 1360 × 1691 mm
• Product Output Capacity: 400 KG per Hour
• Sorting Range: 3 mm – 25 mm
• Compressor Requirement: 10 HP – 15 HP
• Sorting Technology: AI Image Scanning Technology
• Material Contact Parts: Stainless Steel Hopper & Receiver
• Sorting Method: Belt Drive Delivery System

• 🧄 Automatically separates unpeeled garlic, stones, and foreign particles
• 🎯 High-precision AI color detection system
• ⚙️ Wide belt design for higher sorting capacity
• 👀 Image scanning technology for accurate defect detection
• 🏭 Reduces manual labor in garlic sorting process
• 🧼 Stainless steel food-contact parts for hygiene
• 🚀 Suitable for high-capacity garlic peeling plants

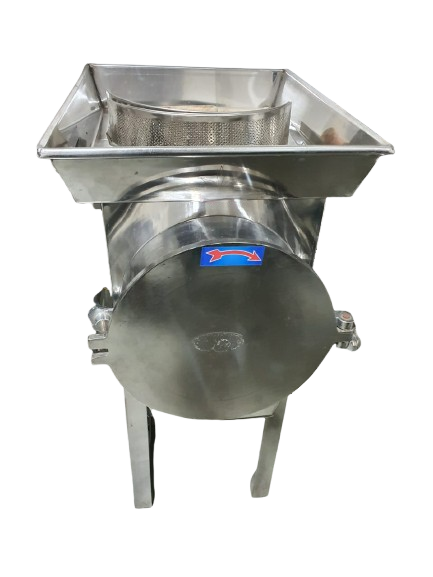

The 3 HP Gravy / Garlic Paste Machine is used to convert peeled garlic into smooth and uniform garlic paste. It is ideal for small to medium garlic peeling plants looking to add value through garlic paste, chutney, or gravy production.

• Machine Type: Gravy / Garlic Paste Machine
• Capacity: 100–150 Kg / Hour
• Motor Power: 3 HP
• Power Supply: Single Phase
• Material: SS 304 Food-Grade Stainless Steel
• Grinding System: Jali Type
• Total Jali: 5 Nos
• Jali Sizes: 1.4, 2.4, 3.4, 5.4, 7.7 mm
• Operation: Continuous
• Application: Garlic paste, chutney & gravy

• 🧄 Smooth & uniform garlic paste output
• 🔩 SS 304 food-grade construction for hygiene
• ⚙️ Multiple jali options for paste thickness control
• 🚀 Stable performance for continuous operation
• 🧼 Easy to clean & low maintenance
• 🔌 Compact design, ideal for small production setups

The 5 HP Gravy / Garlic Paste Machine is designed for higher-capacity garlic paste production. It is ideal for commercial garlic peeling plants looking to manufacture garlic paste, chutney, or gravy in bulk with consistent quality and higher output.

• Machine Type: Gravy / Garlic Paste Machine
• Capacity: 200–300 Kg / Hour
• Motor Power: 5 HP
• Power Supply: Three Phase
• Material: SS 304 Food-Grade Stainless Steel
• Grinding System: Jali Type
• Total Jali: 5 Nos
• Jali Sizes: 1.4, 2.4, 3.4, 5.4, 7.7 mm
• Operation: Continuous
• Application: Garlic paste, chutney & gravy

• 🧄 High-output garlic paste production
• 🔩 SS 304 food-grade body for hygiene & durability
• ⚙️ Adjustable paste thickness using multiple jali sizes
• 🚀 Powerful motor for continuous commercial operation
• 🧼 Easy to clean & low maintenance
• 🏭 Ideal for medium to large garlic processing units

The 7 HP Gravy / Garlic Paste Machine is built for high-capacity, industrial garlic paste production. It is ideal for large garlic peeling plants and food processing units that require very high output, uniform paste quality, and long-hour continuous operation.

• Machine Type: Gravy / Garlic Paste Machine
• Capacity: 600–700 Kg / Hour
• Motor Power: 7 HP
• Power Supply: Three Phase
• Material: SS 304 Food-Grade Stainless Steel
• Grinding System: Jali Type
• Total Jali: 5 Nos
• Jali Sizes: 1.4, 2.4, 3.4, 5.4, 7.7 mm
• Operation: Continuous
• Application: Garlic paste, chutney & gravy

• 🧄 Very high-output garlic paste production
• 🔩 Heavy-duty SS 304 construction for industrial use
• ⚙️ Multiple jali options for precise paste texture control
• 🚀 Powerful motor for non-stop operation
• 🧼 Easy to clean, hygienic design
• 🏭 Ideal for large-scale & export-oriented processing units

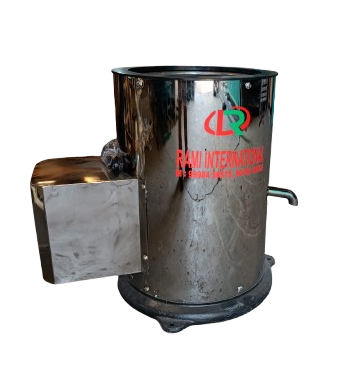

The Garlic Dryer / Spinner Machine is used to remove excess water from peeled garlic after soaking, making it clean, dry, and ready for packing or sale. It is an essential add-on machine for garlic peeling units to improve product quality and shelf readiness.

• Machine Type: Garlic Dryer / Spinner Machine
• Batch Capacity: 13–15 Kg per batch
• Motor Power: 1 HP
• Speed: 720 RPM
• Basket Size: 12″ × 14″
• Basket Material: Stainless Steel
• Operation: Batch type
• Application: Water removal from peeled garlic

• 💧 Efficient removal of excess water from peeled garlic
• 🧄 Maintains garlic quality and clean appearance
• ⚙️ High-speed spinning for uniform drying
• 🧼 Hygienic stainless steel basket
• 🔌 Plug-and-play, easy to operate
• 🔁 Ideal for repeated batch processing

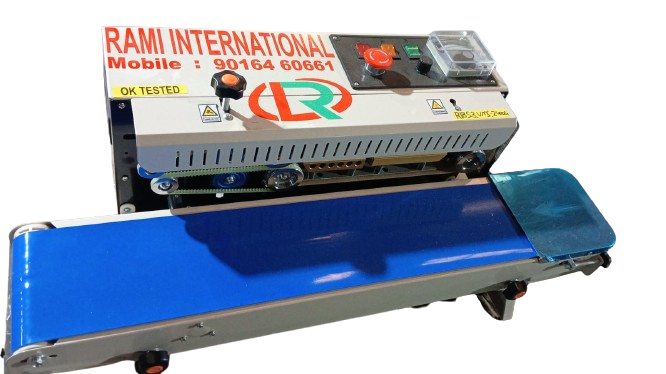

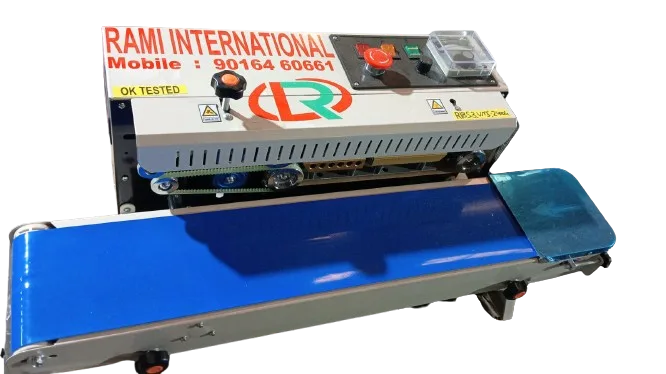

The Band Sealer Machine is used for sealing garlic pouches after peeling and sorting. It provides strong, uniform sealing for plastic and laminated packets, ensuring hygienic packing and longer shelf life of peeled garlic.

• Model: FR-900 MS (Vertical)
• Operation Type: Vertical continuous sealing
• Voltage: 220V / 50 Hz
• Power Consumption: 500 W
• Sealing Speed: 0–12 meters/min
• Sealing Width: 6–12 mm
• Temperature Range: 0–300°C (Adjustable)
• Max Load on Conveyor: Up to 3 Kg
• Machine Weight: ~17–20 Kg
• Machine Size: 900 × 420 × 350 mm

• 🔒 Continuous vertical sealing for faster packing
• 🌡️ Adjustable temperature & speed control
• 💪 Strong, leak-proof sealing for garlic packets
• 📦 Suitable for 1–3 Kg pouch packing
• 🧱 Compact design, easy to operate
• 🏭 Ideal for garlic peeling & packing plants

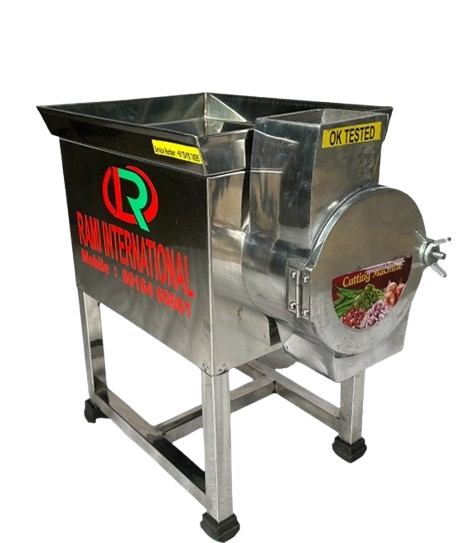

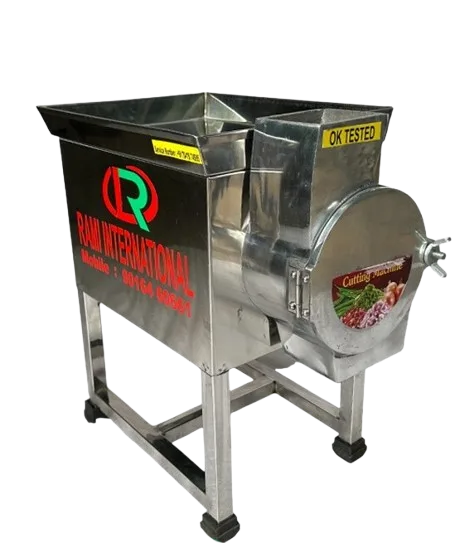

GARLIC / ONION / CHILLY CUTTING MACHINE (CHOPPING) - 1 HP

• Machine Type: All Type Vegetable Chopping Machine
• Model: 1 HP
• Capacity: 50 to 60 Kg
• Size: 20 x 12 x 21 inch
• Weight: 27.400 Kg
• Cutting Blade Size: 14 Inch
• Jali Nos: 4 Nos
• Jali Size: 8 mm, 12 mm, 15 mm, 19.5 mm
• Power: Single Phase
• Material: Stainless Steel

• 🧅 Suitable for onion, chilly, and garlic chopping
• ⚙️ 1 HP model with stable output for small units
• 🔪 14-inch cutting blade for consistent chopping
• 🧩 4 jali options for multiple cut sizes
• 🔌 Single-phase power, easy to install and run
• 🧼 Stainless steel body for hygienic food processing

GARLIC / ONION / CHILLY CUTTING MACHINE (CHOPPING) - 2 HP

• Machine Type: All Type Vegetable Chopping Machine
• Model: 2 HP
• Capacity: 80 to 100 Kg
• Size: 24 x 18 x 30 inch
• Weight: 53.05 Kg
• Cutting Blade Size: 16 Inch
• Jali Nos: 4 Nos
• Jali Size: 8 mm, 12 mm, 15 mm, 19.5 mm
• Power: Single Phase
• Material: Stainless Steel

• 🧅 Suitable for onion, chilly, and garlic chopping
• ⚙️ 2 HP heavy-duty model for higher output
• 🔪 16-inch cutting blade for fast, uniform chopping
• 🧩 4 jali options for multiple cut sizes
• 🔌 Single-phase power for practical operation
• 🧼 Stainless steel body for hygienic processing
